Dependable and Economical Choice: the Best Value Delivery Robot with everything you need.
Reliable Deliveries: Advanced shock-absorbing chassis and PID control for smooth, dependable deliveries.
Cost-Effective Efficiency: Self-charging capability ensures continuous, worry-free operation.
The KEENON DINRBOT T9 Delivery Robot stands out as the best value and most affordable solution for your delivery needs. Its user-friendly 11.6” HD touchscreen ensures easy interaction for both staff and customers, enhancing overall efficiency. The robot’s advanced shock-absorbing chassis and PID control algorithm provides smooth and reliable deliveries, even on challenging terrains. With a high load capacity of up to 40kg and a flexible tray design, it economically meets a wide range of delivery needs. The robot’s autonomous self-charging feature ensures it remains operational without human intervention, offering cost-effective continuous service. Additionally, its intelligent navigation system, powered by SLAM technology, LiDAR and multiple sensors, allows for precise movements and effective obstacle avoidance, making it a smart and economical choice for any service environment.
User-Friendly Interaction: The 11.6” HD touchscreen and ergonomic design ensure easy operation for both staff and customers, enhancing the overall user experience.
Smooth and Reliable Deliveries: The advanced shock-absorbing chassis and PID control algorithm provides seamless acceleration, braking, and turning, ensuring steady deliveries across diverse terrains.
High Load Capacity: With a maximum payload of 40kg and adjustable trays, the robot can accommodate a variety of item sizes, catering to a wide range of delivery demands.
Self-Charging: The robot autonomously returns to its charging station after shifts, ensuring optimal energy levels and worry-free operation during service hours.
Intelligent Navigation: Utilising independently developed SLAM technology and multiple sensors, including LiDAR and stereo vision, the robot achieves precise movements and intelligent obstacle avoidance, supporting collaboration among up to 20 robots for expanded service capabilities.

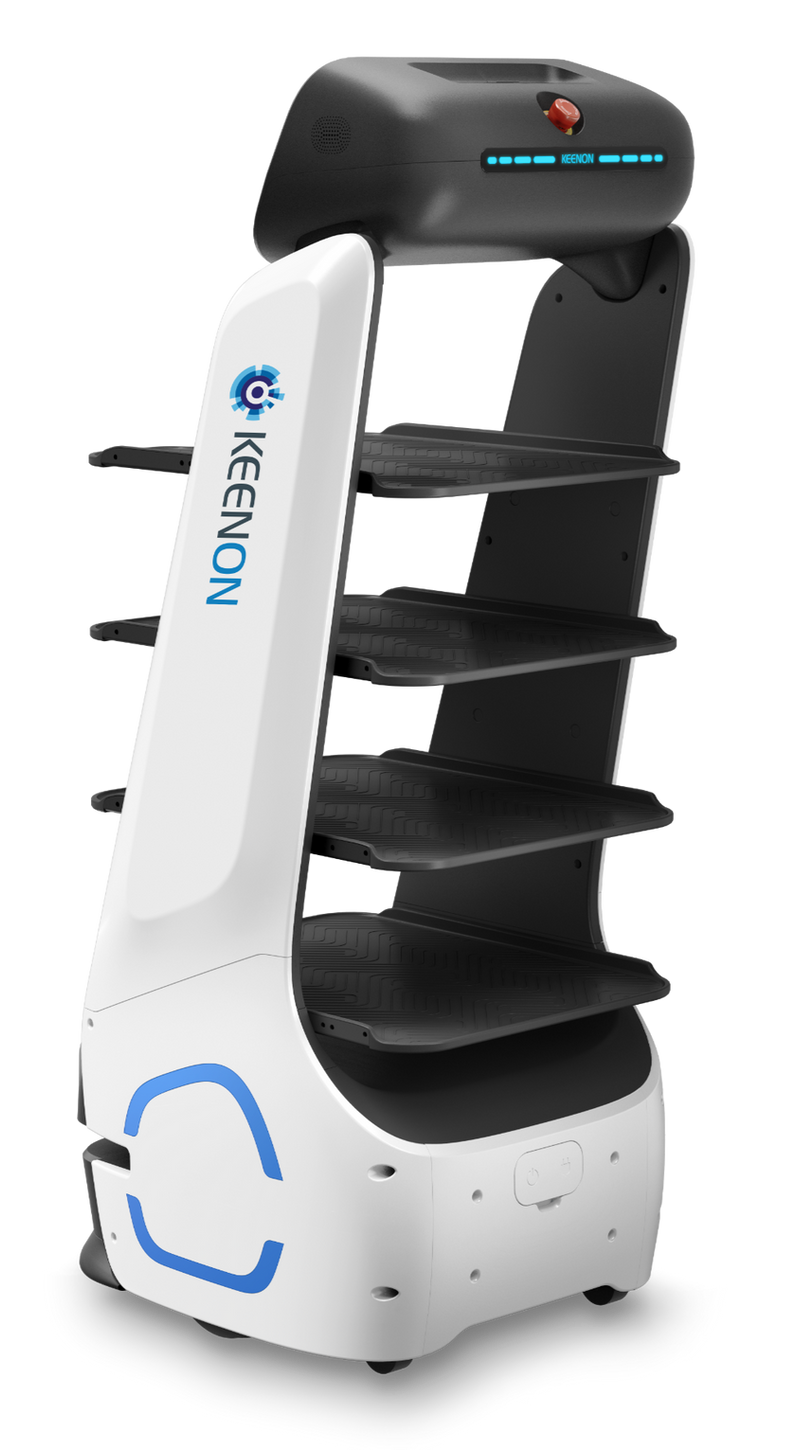

KEENON DINERBOT T9 Delivery Robot
Specification:
Delivery Trays:
Number of Trays: 4
Tray Size:
4 Tray setting: Top tray: 490 x 404 x 195mm, Bottom 3 tray: 490 x 404 x 169mm
3 Tray setting: Top tray: 490 x 404 x 253mm, Bottom 2 tray: 490 x 404 x 228mm
Load Capacity: Total 40kg (10kg per tray)
Tray access: Open access from the front and the rear
Positioning & Navigation: LiDAR, Image Module
Safety:
Obstacle Avoidance: Dual stereo vision
Obstacle Avoidance Coverage:
LiDAR detection range: 216°, <=20 m
3D Stereo Vision range: 140°, 0.1m ~ 1.5 m
Image Module: 120°, celling height 2 ~ 8m
Sensors: LiDAR, Stereo Vision Sensor, Image Module, Collision Sensor, IMU(Inertial Measurement Unit)
Intelligent Obstacle Avoidance Maximum Detect Range: ≤1.5M
Screen:
Control Screen Size: 11.6" Touch Screen
Resolution: 1080p
Speaker: 2
Performance:
Maximum Coverage Area per Device: 200x 200m2
Speed: 0.1 ~ 0.8m/s adjustable
Minimum Pass Width: 70cm
Maximum Climbing Angle Slope: ≤5°
Multi-robot Collaboration: Up to 20 Robots
Multi-point Delivery: Up to 20 points (single delivery)
Mechanical
Robot Dimension (W*D*H) 500 x 527 x 1,266 mm
Net Weight: 63kg
Body Color: White
Main Material: PC & ABS
Service Life: 20,000 hours
Battery and Charging:
Battery Runtime (Max): 13 ~ 18 Hours
Battery Type: Ternary lithium battery
Battery Capacity: DC48V, 12Ah
Charging Mode: Auto / Manual
Charging Input: 100-240V~, 50/60Hz
Charigng Time: 4 hours
Charging Pile Dimension: 215 x 290 x 230 mm
Charging Pile Weight 2.2kg
Operation Environment:
Operating Temperature: 0~40°C
Humidity RH: 5%~85%
Working Environment: Indoor environment, flat ground
Storage Temperature: -30°C ~ 60°C
Network Connection:
WIFI: 802.11b/g/n 2.4GHz
Package Content:
T9 Robot, 4x Silicone Pad, 1x Charger, 1x Auto Charging Pile, Manual
Operation System and Function:
System: Linux (Control) & Android (Interact)
App Language: English, Chinese, Japanese, Korean
App Functions: Food Delivery, Multiple Delivery, Dish Return, Greeting and Escort, Celebration
Expression: 3 types
Voice Reminder: Different voice prompts in different working modes and general operation
Usage Senario
Hospitality, Library, Retail, Warehouse, Factory
